- 1. Fix the supporting magnets at both ends and fix them in a suitable position. As long as the magnetic field generated by the supporting magnets at both ends is analyzed, it can be known that the supported magnet is actually in a bowl-shaped magnetic field in the vertical direction. The supported magnet will slide to the center of the bowl, that is, the middle of the supporting magnets at both ends, and receive an upward support force.
- 2. But it is impossible to suspend stably just by being lifted. Even if there is a slight resistance, it will lose balance. So we will move the supported magnet slightly outward from the middle of the supporting magnets at both ends. According to the force analysis, the magnet will receive another force, which points to the direction of movement, so the tip will lean against the support. Therefore, the external disturbance can be offset by the clever friction of the support. If it is adjusted
- 3. On the basis of the suspension, 3 solar cells are formed into a quadrilateral shape. The solar cell facing the opposite side is the positive pole connected to the negative pole of the other. After treating the solar cell in this way, the solar cell can be regarded as a solar cell with automatic reversing function.
- 4. Connect this set of solar cells with automatic reversing function to a coil. When in operation, the solar cells doing positive work are always in a well-lit position, generating a large current, while those doing negative work are always in the dark side, generating a small current, so the rotor can continuously run in 1 direction.
- 5. The product requires high-power light sources (sunlight, bathroom lamp, tungsten lamp, spotlight), etc. General fluorescent lamps, energy-saving lamps, and LED lamps are not enough to drive this product!

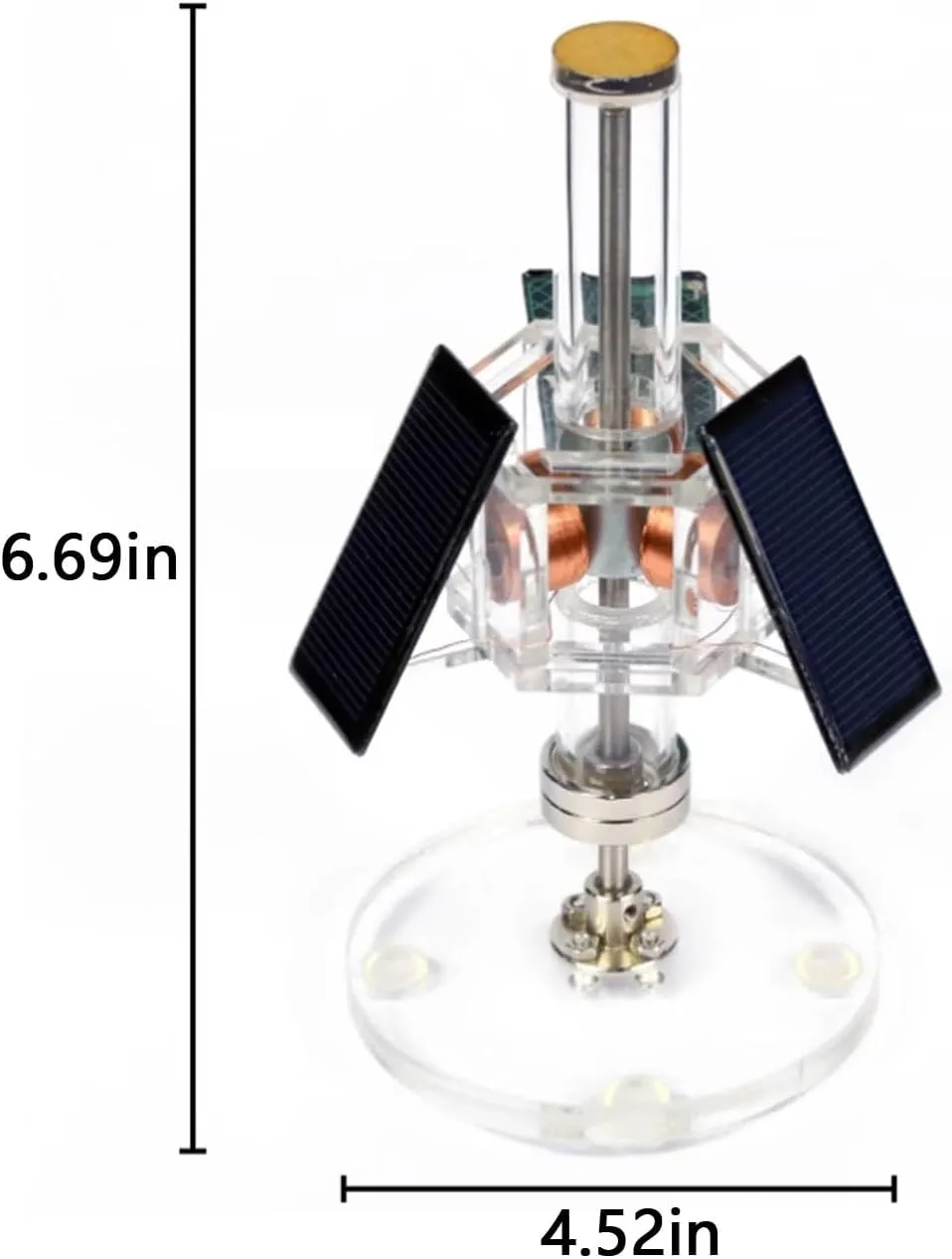

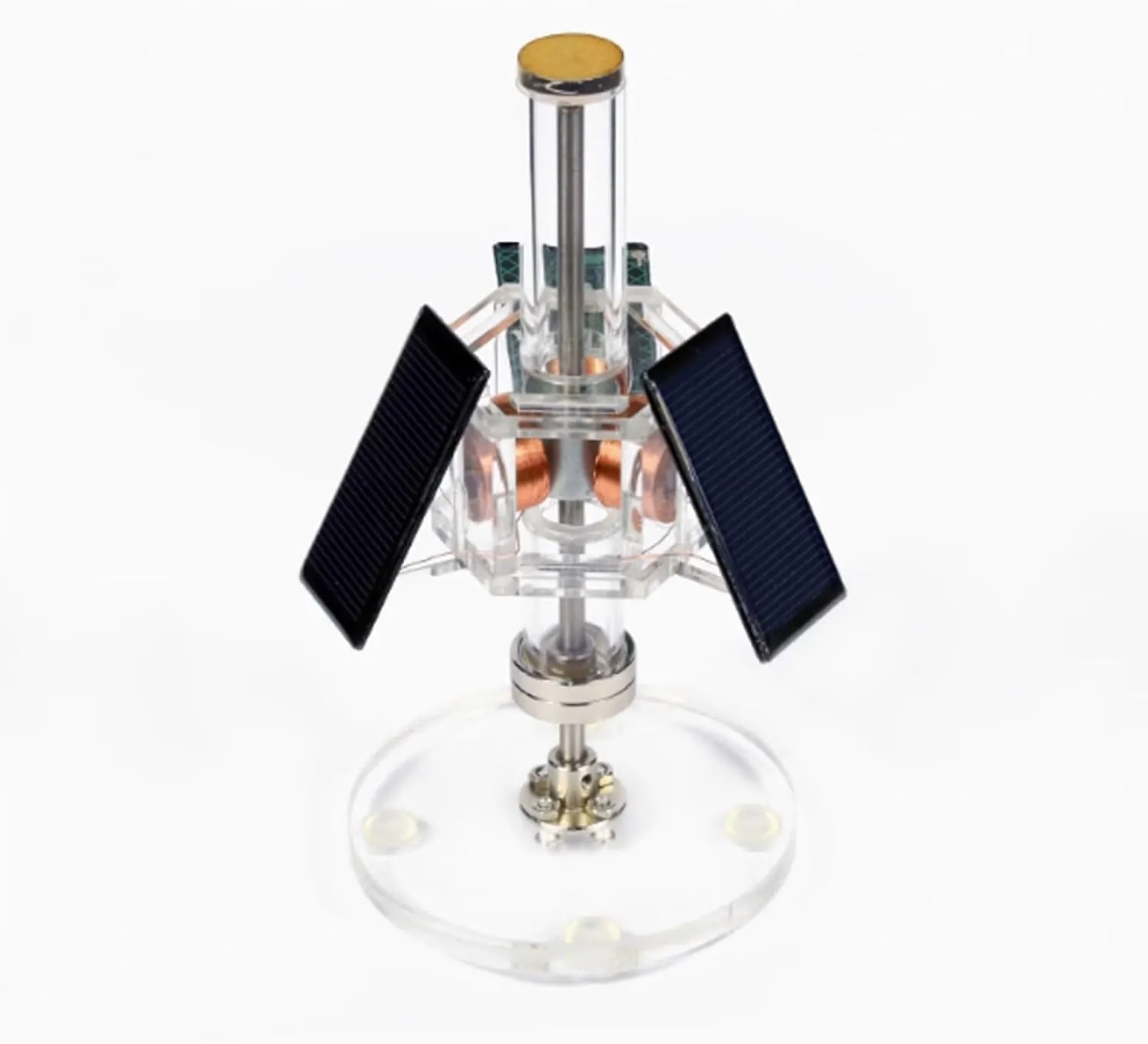

Product name: vertical three-sided magnetic levitation solar motor
Size: 115*170mm
Speed: 300-1500 rpm
Weight: 266g
Product name: tree-shaped nine-sided solar motor
Current: 1A
Weight: 417g
Voltage: 0.5V
Size: 100*230mm
Note:
1. Strong magnets are brittle. Do not let strong magnets adsorb freely. Strong impact will damage the magnets.
2. Acrylic is easy to scratch. It is coated before leaving the factory. Please do not care if it is different from the details page when you receive it. You can tear off the film and it will be the same as the details page.
3. Acrylic is also known as plexiglass. It is a kind of plastic. Please do not put the product in the car or in a high temperature place, which will cause the acrylic to deform and damage the product. At the same time, please do not drop the acrylic, which will cause the acrylic to break.
4. If the solar panel falls during high-speed rotation/transportation, you can use glue to paste it.
Instructions for use
1. The product can rotate when exposed to light. The best light source we need is strong sunlight. You can take us outdoors or place us by an open window on a sunny day.
2. We can also rotate under high-power lights, such as bathroom lamps, decorative spotlights, etc. Please pay attention to safety when using.
